Duct heating systems offer whole-home warmth by dispersing heated air through vents and ducts. This makes them suitable for Australian homes that are prone to frigid winters. This guide explains everything from choosing the correct system to best practices for maintenance to help you enjoy all-year-round comfort and efficiency without making costly errors.
Why Duct Heating Systems Matter

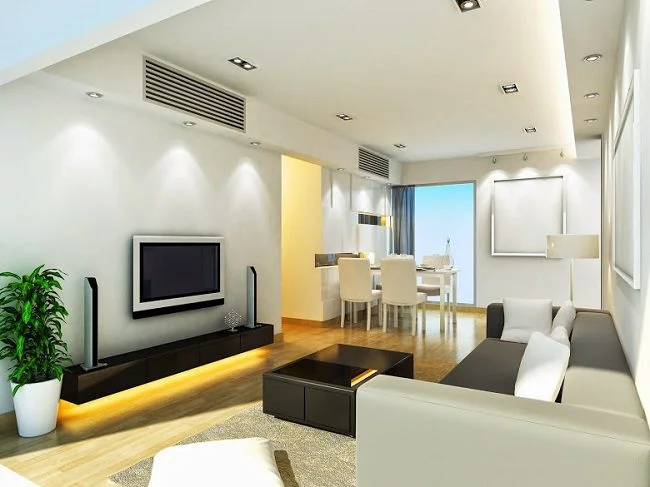

Central duct heating system eliminates uneven temperatures and heavy appliances by providing consistent warmth via discrete vents. Beyond comfort, these systems work with air filtering to purify indoor air and less the energy used by utilizing the use of zoned temperature control. For Australian homes with tall ceilings, or layouts that are open these systems can help stop “hot spots” while operating more quietly as opposed to portable heating.
The Australian Context: Climate and Practicality
Southern regions of Australia are subject to extreme winters with temperatures that drop to below freezing. In Melbourne’s suburbs, or the Tasmanian highlands, heating ducts fights constant dampness that can exacerbate cold. Northern homes also have reverse-cycle heating systems which handle both cooling during summer and winter heating all in one place.
Energy Sources: Local Realities
- Natural gas is cost-effective in urban areas that are connected, but not available regionally.
- Electronic reverse cycle 300-600 percent efficiency (heat output in comparison to. the energy consumed) through refrigerant technology.
- solar hybrids New systems combine rooftop PV panels to reduce operating costs by 40-60 percent.
How Duct Heating Works
The central component (furnace or heat pump) is a device that draws air, warms it, and then moves the air through insulation ducts that lead to ceiling or vents on the floor. Thermostats control output, and dampers that are zoning allow for the control of a room by room.
Gas and. Electric Vs. Reverse Cycle
| Type | Best For | Efficiency | Installation Cost |
|---|---|---|---|
| Gas furnace | Homes that are gas-ready, cold climates | 80-95% AFUE | $5,000-$8,000 |
| Electric furnace | Smaller homes, milder regions | 100% (no flue loss) | $4,000-$6,500 |
| Reverse cycle | All year round climates | 300-600% COP | $7,000-$14,000 |
| Annual Fuel Utilization Efficiency | Coefficient of Performance |
Planning and Installation
Sizing Your System
Oversized units are overworked; undersized units run short. Important calculation:
- The floor area Multiply length (m2) by the width (m2).
- The insulation factor Walls/roofs: Rate (R-value).
- Window Impact Double-glazed equals 10 percent lesser weight. Example: 200m2 Adelaide house with low insulation will require a minimum of 25kW.
Installation Process
- Ductwork style Limit bends and use steel that is rigid as the main run.
- Unit placement: Garages/crawlspaces reduce noise.
- Vent position Location of vents in bedrooms (floor vents) and living spaces (ceiling).
- Commissioning Balance of airflow and CO safety inspections (gas devices).
Costs Breakdown
| Component | Price Range (AUD) |
|---|---|
| Gas furnace unit | $2,500-$5,000 |
| Ducting (per m) | $50-$120 |
| Labour (per day) | $800-$1,200 |
| Thermostat/zoning | $400-$1,500 |
Maintenance and Troubleshooting
Essential Upkeep Tasks
| Frequency | Task | Impact |
|---|---|---|
| Monthly | Filter vacuuming | It prevents airflow issues for 80% of the time. |
| 6-monthly | Cleaning of the vents | Eliminates dust and mould accumulation |
| Yearly | Professional service | Maintains efficiency/safety |
| 5-yearly | Testing the pressure of ducts | Identifies leaks |
Common Issues Solved
- Inequal heating Adjust dampers; close the gaps between ducts with Mastic.
- Noises that rattle Make sure you tighten the brackets and replace damaged pipes.
- Gas smells/Pilot light not working immediately shut down and tech call.
Efficiency and Upgrades
Proven Efficiency Boosters
- Zoning is a way to save 25-30% by heating only rooms that are occupied.
- Duct Sealing Mastic tape decreases the loss of heat by 15 to 15 to 5%.
- Smart thermostats Learn models (e.g., Nest) reduce costs by 10-12 percent.
Retrofit Success Story
The Nguyen family (Canberra):
- Problem: 1990s gas duct heater (55% efficiency).
- Solution: replaced by 9.5-star reverse-cycle device.
- Result: 40% savings on costs; summer cooling also added.
Health and Safety
Air Quality Essentials
- MERV 8-13 filters: Trap pollen, dust mites.
- UV-C lamps: kill mould in the ducts ($400-$800 installation).
- CO detectors: required close to gas heaters.
Regulatory Compliance
- Gas systems: Must have a certified fitter and AS/NZS 5601 to be in compliance.
- Electrical work: must be in compliance with AS/NZS 3000 standards.
Environmental Impact
Modern reverse-cycle systems make use of R32 refrigerant (70 percent less the potential of global warming that R410A). When combined with solar, a six-kW system could reduce annual emissions by a minimum of 3-4 tonnes compared to gas heating. Federal rebates (e.g. the Victoria’s VEEC) can be as high as $1000 for upgrades that are efficient.
Top Questions Answered
“How long do systems last?”
- Gas furnaces: 15 years or more
- Electric/reverse-cycle: 12-18 years
Tips: A once-a-year service can double the life span.
“Can I install ducts in an existing home?”
Yes! Options:
- Ceiling cavity: Minimal renovation; flexible ducts.
- Underfloor Best when built on foundations that are raised.
- Bulkhead boxing: Conceals ducts along corridors.
“What size system for a 4-bedroom home?”
- Sydney: 20-25kW
- Melbourne: 25-30kW
- Tasmania: 30-35kW
Always use a manual J computation.
“Why is my system blowing cold air?”
- Electric: Heating element that is not working properly ($150-$400)
- Gas: Ignition fault or a thermocouple problem ($90-$250)
- Reverse-cycle: The refrigerant used is not as high (requires specialist)
Conclusion
A well-designed Duct Heating System offers unbeatable comfort for Australian homes if properly sized and maintained. Make sure to have a professional install and biannual changes to the filter and efficiency improvements such as the ability to zon. For homes that do not have gas, reverse-cycle systems provide all-year-round performance that is climate-friendly. Be sure to verify that technicians are an ARCtick certification and give written warranties. When you invest in top equipment and proactive maintenance the duct heating system will be able to provide consistent warmth for many years.
